Lightweight Foam Concrete Pump

Brief Introduction

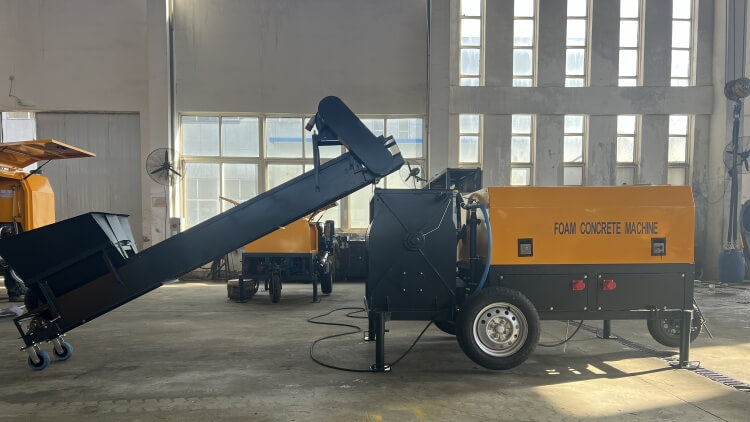

Introduction of HWF Lightweight Foam Concrete Pump

Foam concrete specially made by foam concrete mixer is a kind of advanced lightweight and insulated material. This material has a great number of closed pores. With the help of the foaming system of the foaming machine, foam agents can foam fully and mechanically. Then foam and cement paste are mixed evenly. Next, the mixture will be out from the pumping system to cast in place construction or form mold. After natural conservation, foam concrete forms.

Features

Features and Advantages of HWF Lightweight Foam Concrete Pump

Features

HWF foam concrete machine is a small-sized foam concrete machine, designed for compact construction, which is easy to operate, mobile and low cost;

Pumping, foaming and mixing system assembles as a whole, convenient to use;

It has the continuous feeding system and water supply system, with high pumping height and low power requirement.

Adopt one phase power source, and the power is moderate, convenient for family construction.

Advantages

Frequency converter:Adopts digital control technology, can exactly adjust foam cement density.

Static mixer : Reduce the ratio of foam loss and guarantee the quality of the foam concrete.

Hose pump: Compared with screw pump and piston pump, the hose pump has almost no damage to the performance of foamed concrete.

Screw conveyor: Don't have to anyone to operate, time-saving and labour-saving.

Dust cover: Protect working people from dust, keep healthy.

Parameters

Parameters of HWF Lightweight Foam Concrete Pump

Technical parameters:

Model	HWF20	HWF30	HWF40
The theoretical output (m³/h)	20	30	40
Max. Horizontal convening distance(m)	500	500	1200
Max. Vertical convening distance(m)	80	80	160
Voltage	3 phase, 380V, 50Hz
Power(kw)	21	21	47
Mixing tank capacity (L)	580	580	735
Filling height (mm)	1100	1100	1100
Over dimension(mm)	30001420830	220015401760	280016501760

Shipping List:

Foam concrete machine	1 set
φ32mm x 20m delivery pipe	3 pieces, 60 meters totally
water pump	1 set
water bag	1 set
water bag holder	1 set
water hose	1 pc
tool box	1 set
screw conveyor	1 set

Detail Part

Detail Part of HWF Lightweight Foam Concrete Pump

Application

Application of HWF Lightweight Foam Concrete Pump

Foam concrete has a wide range of applications, including external wall thermal insulation, thermal insulation roofing, thermal flooring, upstanding beam foundation ditches filling, sound insulation and fire protection walls, playground and track construction, sound insulation layer and tunnel lining filling, cellar, basement and arch filling, sewers and drains filling, horizontal floor heightening, water tank and fuel tank building, platform filling and mending, garden and rockeries, foam concrete block, and foamed concrete precast hollow wallboard casting.
