injection grout plant

Brief Introduction

Introduction of HWGP400/700/320/100TPI-E Injection Grout Plant

HWGP400/700/320/100TPI-E injection grout plant is mainly composed of high-speed grouting mixer, agitator, three-cylinder single-acting reciprocating piston pump and control system. Three-cylinder single-acting reciprocating piston pump ensures smooth mud flow without pulsation, minimizes pulsation and reduces leakage. Can be used for various grouting applications.

Features

Features of HWGP400/700/320/100TPI-E Injection Grout Plant

HWGP400/700/320/100TPI-E Injection Grout Plant

Three-cylinder single-acting reciprocating piston pump: Ensures smooth and pulsation-free slurry flow, minimizes pulsation, and reduces leakage

Adjustable grouting pressure and volume: Precise control of grouting pressure and volume allows for tailor-made operations to meet specific project requirements

HWGP400/700/320/100TPI-E Injection Grout Plant

Squeeze switch operation: Simplify the work process and improve user convenience

Easy to operate and maintain

Particle size compatibility up to 5 mm: Adapts to various grout formulations, ensuring efficient mixing and pumping of materials with different particle compositions

Parameters

Parameters of HWGP400/700/320/100TPI-E Injection Grout Plant

Name	Data
Type	HWGP400/700/320/100TPI-E
Mixer	Volume(L)	400
	Speed(rpm)	1500
Agitator	Volume(L)	700
	Speed(rpm)	45
	Power(KW)	3
Grouting pump	Stroke (mm)	110
	Cylinder diameter (mm)	80
	Pump speed (Times/min)	214	153	109	78
	Flow(L/min)	320	230	165	118
	Pressure(MPa)	2.2	3.6	6.2	10
	Power(KW)	30
Dimension	Dimension(mm)	2300×2100×1880
	Weight(KG)	1500

Detail Part

Detail Part of HWGP400/700/320/100TPI-E Injection Grout Plant

Application

Application of HWGP400/700/320/100TPI-E Injection Grout Plant

HWGP400/700/320/100TPI-E Injection Grout Plant is a versatile and compact grouting equipment that combines a mixer, a circulation pump, and a grouting pump in one integrated system. This combination enables an efficient and continuous grouting process.The grout injection plant is widely used in mines, tunnels, culverts, subways, hydropower projects, underground projects, etc.

Repair Of Kilns, Boilers, Furnaces And Concrete Buildings

Wodetec is a national high-tech enterprise specializing in the research, development, production, sales.Wodetec is a national…

Repair Of Kilns, Boilers, Furnaces And Concrete Buildings

Wodetec is a national high-tech enterprise specializing in the research, development, production, sales.Wodetec is a national…

Repair Of Kilns, Boilers, Furnaces And Concrete Buildings

Wodetec is a national high-tech enterprise specializing in the research, development, production, sales.Wodetec is a national…

Repair Of Kilns, Boilers, Furnaces And Concrete Buildings

Wodetec is a national high-tech enterprise specializing in the research, development, production, sales.Wodetec is a national…

Packaging

Packaging Display

Products

Recommend Relevant Products

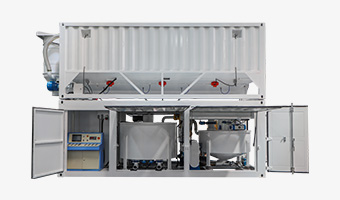

Cement Silo and 20gp container size automatic mixing plant
