2000L Mechanical Agitated Hydroseeder

Brief Introduction

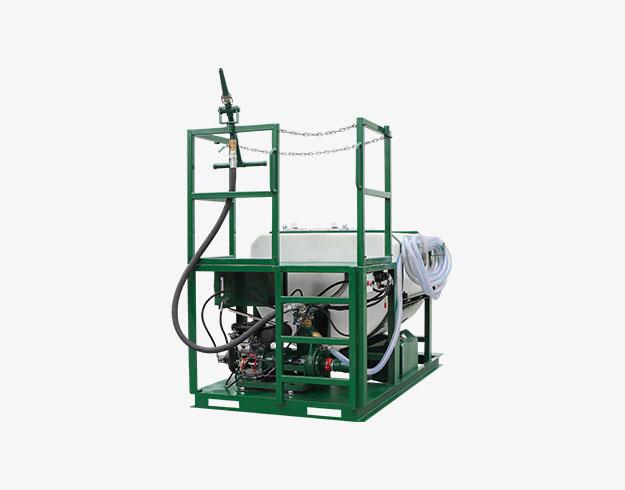

HWHS0217PT Mechanical Agitated Hydroseeder

HWHS0217PT mechanical-agitated hydroseeder has an engine design of a 23 H. P. BRIGGS STRATTON gasoline engine made in the USA that is directly coupled to a 3″ X 1.5″ high volume, high-pressure centrifugal pump and oil gear pump that drives an aggressive mixing paddle. The platform and tower gun are standard equipment. Standard equipment includes 60m of DN32 hose with free-flow couplings mounted on hose holders on the side of the tank. It also includes three nozzles ( 1 wide hydro seeding nozzle, 1 straight distance nozzle, and 1 trim nozzle). The spray distance of the tower gun is approximately 28m.

Features

Features of HWHS0217PT Mechanical Agitated Hydroseeder

HWHS0217PT Mechanical Agitated Hydroseeder

Poly tank. Only as a carrier for fluid, fast clean up, never rust.

BRIGGS STRATTON 23 hp made in the USA with electric start. The electromagnetic clutch controls the action of the centrifugal pump.

Hydraulic motor drives paddles to achieve positive and negative mixing, which is more conducive to material mixing and elimination.

Paddles are supported completely by a heavy steel frame and put stress on the tank.

3″ X 1.5″ centrifugal pump. Electromagnetic clutch control centrifugal pump.

HWHS0217PT Mechanical Agitated Hydroseeder

Outlet 3 pipelines: town gun, self circulation, DN32 hose.

Fully mixed materials by self circulation system. Long injection distance, high efficiency and high factor of safety.

Easy and convenient maintenance and replacement of vulnerable parts.

Jets are equipped with a quick coupler for easy service in the unlikely event of a problem.

Hydraulic control system. Electrical control system. One button for the pump, one lever for the paddles.

Parameters

Parameters of HWHS0217PT Mechanical Agitated Hydroseeder

Specification:
1. Poly tank means fast cleaning up, never deal with tank rust.
2. Paddles are supported completely by a heavy steel frame and put stress on the tank.
3. Positive and negative hydro motors will mix thick slurries of difficult materials.
4. Load full bales of hydro-seeding mulch. No need to break the seeder up.
5. The distance to spray a load from the tower is up to 28m.
6. Simple to operate.

Model		HWHS0217PT Mechanical-agitated Hydroseeder
Volume	2m³		Material of a tank	Polyethylene
Agitated Speed	0-120r/min		Material of frame	Steel
Engine			23 hp gasoline engine with electric start
Passage section of pump			3″ X 1.5″ centrifugal pump
Capacity of pump	120 m³/h		Coverage	620 m2/tank
Hose length	20m		Empty Weight	1180kg
Loaded Weight	2810kg		Overall Size(LXWXH)	2920×1630×2290mm
Data: 1. All data are tested by water. 2. We can customize products according to your requirements.

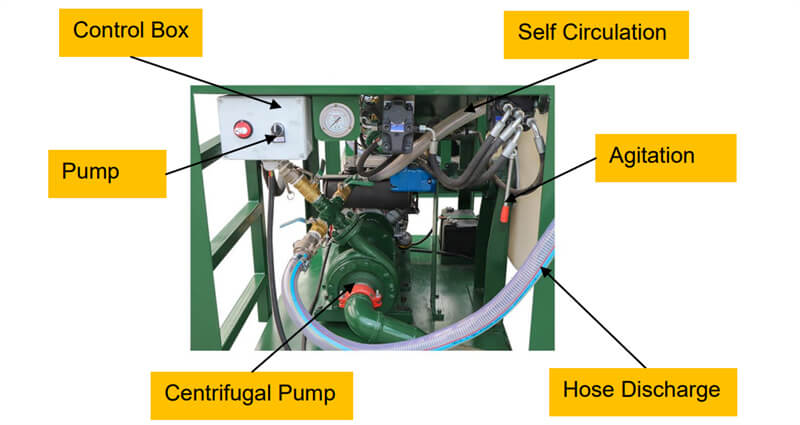

Detail Part

Detail Part of HWHS0217PT Mechanical Agitated Hydroseeder

Application

Application of HWHS0217PT Mechanical Agitated Hydroseeder

HWHS0217PT Mechanical Agitated Hydroseeder suitable for demanding erosion control and large-scale revegetation projects, particularly on challenging terrain such as hillsides. HWHS series hydroseeder machines are increasingly used in road greening, highway slope greening, erosion prevention, landfill coverage, mine reclamation, dust control, landscaping, and other projects. It is mainly used for permanent vegetation planting, Gunite, slope protection, and other areas, grass planting, and erosion prevention.
