HWCP20H-H Squeeze Type Hose Pump For Mining can efficiently transport pulp, abrasive slurry, and chemical media containing high concentrations of solid particles. Squeeze Type Hose Pump has no sealing structure, which eliminates the risk of leakage and significantly reduces the frequency of downtime and maintenance in mine operations. Squeeze Type Hose Pump has passed IP65 protection level and explosion-proof certification, meeting the extreme working conditions of open-pit/underground mining.

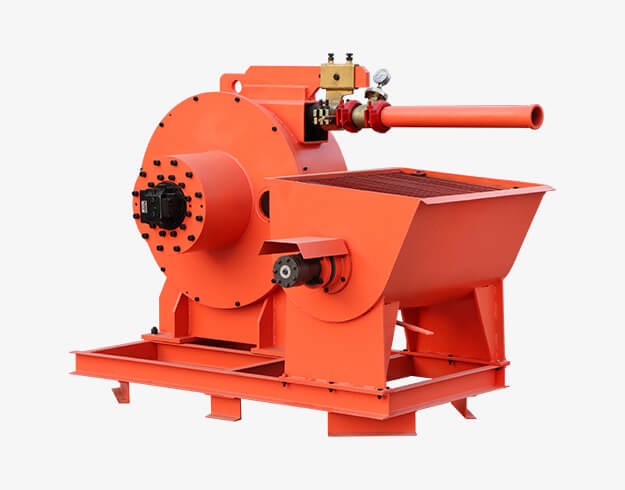

Introduction of HWCP20H-H Squeeze Type Hose Pump For Mining
HWCP20H-H Squeeze Type Hose Pump For Mining adopts high-strength and wear-resistant composite hose, which can efficiently transport pulp, tailings, and chemical media containing highly abrasive solid particles. The unique three-dimensional extrusion technology ensures a flow accuracy of 1%, and the valveless design completely solves the problem of traditional pump body blockage, significantly reducing the frequency of shutdown and maintenance. Our Squeeze Type Hose Pump can be matched with explosion-proof motor options, which perfectly adapts to complex working conditions such as underground operation, concentrator, and open pit mines, and is a cost-effective fluid transportation choice in heavy industries such as gold mines, copper mines, and coal mines.
Features
Features of HWCP20H-H Squeeze Type Hose Pump For Mining
HWCP20H-H Squeeze Type Hose Pump For Mining
Compact Design： Integrated pump, mixer & hydraulic drive on one base.
Smart Hydraulic Drive： Stepless speed control with plug-and-play power unit.
Quick-Change Hose： Only wear part, <5 min replacement.
Parameters of HWCP20H-H Squeeze Type Hose Pump For Mining
Model
HWCP20H-H
Output Capacity
20m3/h
Working Pressure
2.5Mpa
Rotate Speed
40rpm
Squeeze Hose ID
76mm
Drive type
Hydraulic motor
Australia client use it for mining project.
Detail Part
Detail Part of HWCP20H-H Squeeze Type Hose Pump For Mining
Application
Application of HWCP20H-H Squeeze Type Hose Pump For Mining
HWH series peristaltic hose pumps are mainly used for long-distance transportation, metering pump delivery, pressure grouting and spraying of viscous mud in construction, underground engineering, mining, textile, papermaking, water treatment, ceramics and other fields.
