HWCP40H-E Large Output Chemical Peristaltic Pump is widely used in chemical processing, petrochemical refineries, wastewater treatment, and mining production. These heavy-duty pumps use advanced peristaltic technology to safely handle corrosive, abrasive, or sensitive fluids without causing pollution.
Introduction of HWCP40H-E Large Output Chemical Peristaltic Pump
HWCP40H-E Large Output Chemical Peristaltic Pump is specially developed for treating highly corrosive, viscous, and sensitive chemical media. The chemical peristaltic pump adopts an industrial-grade reinforced pump head structure, and with high chemical tolerance hose, it can stably transport more than 200 kinds of chemicals such as acid-base solution and organic solvent.
The maximum flow rate of the peristaltic pump can reach 45m³/h, and the working pressure is 2.5Mpa, which supports the integration of frequency conversion and remote automation and is especially suitable for harsh industrial scenes such as chemical production, wastewater treatment, and semiconductor wet process. Certified by ISO9001, it is the first choice for large-scale chemical pumping with safety and high efficiency.
Features
Features of HWCP40H-E Large Output Chemical Peristaltic Pump

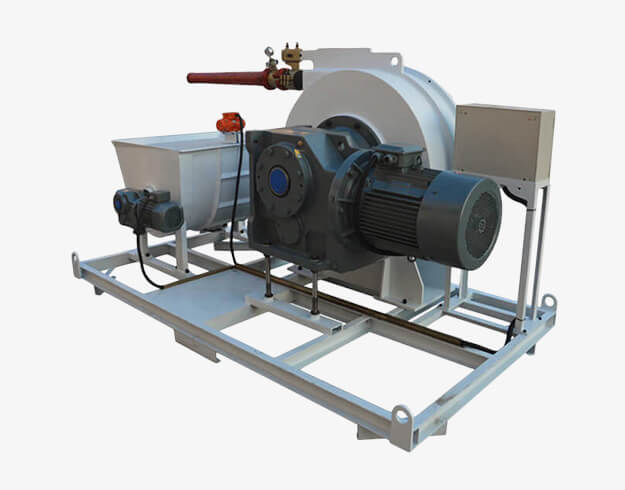

HWCP40H-E Large Output Chemical Peristaltic Pump
Compact Design： Integrated pump, mixer & hydraulic drive on one base.
Smart Hydraulic Drive： Stepless speed control with plug-and-play power unit.
Quick-Change Hose： Only wear part, <5 min replacement.
Parameters of HWCP40H-E Large Output Chemical Peristaltic Pump
Model
HWCP40H-E
Output Capacity
45m3/h
Working Pressure
2.5Mpa
Rotate Speed
39rpm
Squeeze Hose ID
100mm
Motor Power
45Kw
Singapore client use it for pumping concrete.
Detail Part
Detail Part of HWCP40H-E Large Output Chemical Peristaltic Pump
Application
Application of HWCP40H-E Large Output Chemical Peristaltic Pump
HWH series peristaltic hose pumps are mainly used for long-distance transportation, metering pump delivery, pressure grouting and spraying of viscous mud in construction, underground engineering, mining, textile, papermaking, water treatment, ceramics and other fields.
