Electric Engine Industrial Hose Pump

Brief Introduction

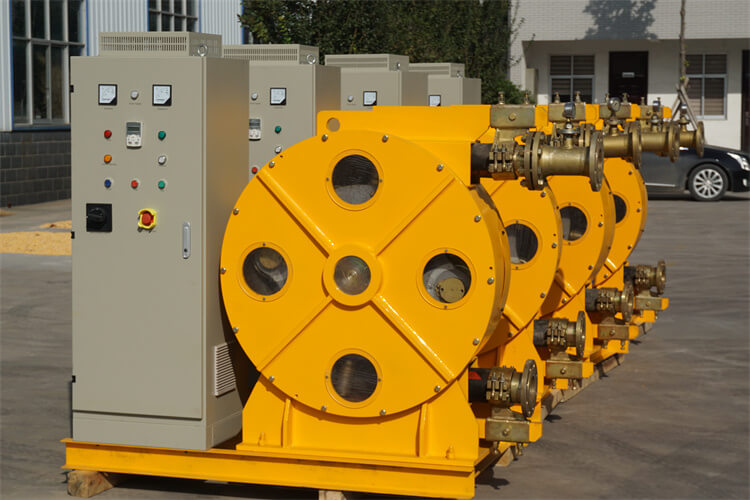

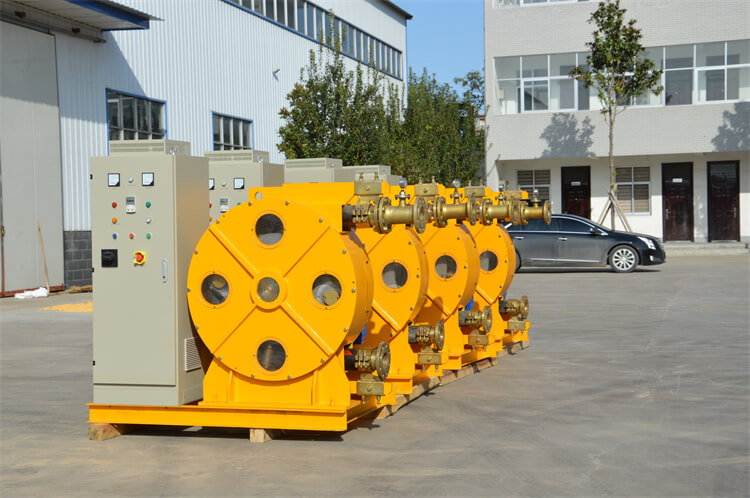

Introduction of HWH100-915B Electric Engine Industrial Hose Pump

HWH series peristaltic hose pump consists of pump shell, rotor, roller, idler, extrusion tube, and transmission device. The extrusion hose in the pump chamber forms a U-shaped structure, which is deformed when the rotor drives the roller to rotate. With the rotation of the roller, the hose returns to its original state due to its elastic recovery. Negative pressure is formed in the hose so that the mud is sucked in and discharged through the outlet under the action of the roller, and finally, the pressure transportation of the mud is realized.

Features

Features of HWH100-915B Electric Engine Industrial Hose Pump

HWH100-915B Electric Engine Industrial Hose Pump

No seals

No valves

Self-priming

Only tube to replace

Dry-running without damage

HWH100-915B Electric Engine Industrial Hose Pump

Reversible

No contact between product and mechanical parts

Able to pump products with solid parts inside

Easy maintenance, low-cost, short down time

Parameters

Parameters of HWH100-915B Electric Engine Industrial Hose Pump

Model	HWH100-915B
Output Capacity	30m3/h
Working Pressure	2.5Mpa
Rotate Speed	32rpm
Squeeze Hose ID	100mm
Motor Power	45Kw
UAE client use it for pumping cement slurry in Dubai World Expo Project.

Detail Part

Detail Part of HWH100-915B Electric Engine Industrial Hose Pump

Application

Application of HWH100-915B Electric Engine Industrial Hose Pump

HWH series peristaltic hose pumps are mainly used for long-distance transportation, metering pump delivery, pressure grouting and spraying of viscous mud in construction, underground engineering, mining, textile, papermaking, water treatment, ceramics and other fields.
