HWH65-600B Squeeze Peristaltic Pump

HWH65-600B Squeeze Peristaltic Pump can Adopt 2 or 3 squeeze rollers according to the requirements. The Squeeze roller and pump core adopt galvanized process, to avoid rust. The joint adopts carbon steel safety joints, and the clamp adopts concrete pump with special high pressure and quick clamp. Its output capacity is 8m3/h and working pressure is 1.5Mpa.
Output Capacity:8m3/h
Working Pressure:1.5Mpa
Rotate Speed:34rpm
Squeeze Hose ID:65mm
Motor Power:7.5Kw
Share With:
Brief Introduction
Features
Parameters;
Detail Part
Application
Shipping
Related
Inquiry
Brief Introduction
Introduction of HWH65-600B Squeeze Peristaltic Pump
HWH series peristaltic hose pump consists of pump shell, rotor, roller, idler, extrusion tube, and transmission device. The extrusion hose in the pump chamber forms a U-shaped structure, which is deformed when the rotor drives the roller to rotate. With the rotation of the roller, the hose returns to its original state due to its elastic recovery. Negative pressure is formed in the hose so that the mud is sucked in and discharged through the outlet under the action of the roller, and finally, the pressure transportation of the mud is realized.
Features
Features of HWH65-600B Squeeze Peristaltic Pump
HWH65-600B Squeeze Peristaltic Pump
No seals
No valves
Self-priming
Only tube to replace
Dry-running without damage
HWH65-600B Squeeze Peristaltic Pump
Reversible
No contact between product and mechanical parts
Able to pump products with solid parts inside
Easy maintenance, low-cost, short down time
Parameters
Parameters of HWH65-600B Squeeze Peristaltic Pump
Model HWH65-600B
Output Capacity 8m3/h
Working Pressure 1.5Mpa
Rotate Speed 34rpm
Squeeze Hose ID 65mm
Motor Power 7.5Kw
CREG use it for grouting bentonite.
Detail Part
Detail Part of HWH65-600B Squeeze Peristaltic Pump
Application
Application of HWH65-600B Squeeze Peristaltic Pump
HWH series peristaltic hose pumps are mainly used for long-distance transportation, metering pump delivery, pressure grouting and spraying of viscous mud in construction, underground engineering, mining, textile, papermaking, water treatment, ceramics and other fields.

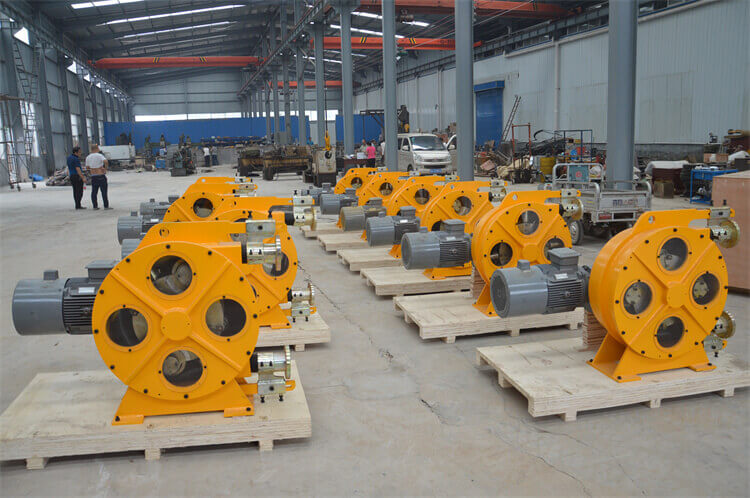

Packaging
