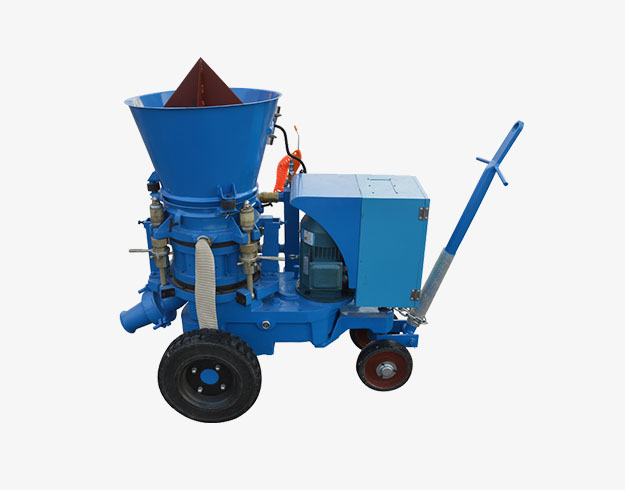

HWZ-3ER Electric Refractory Gunite Machine

HWZ-3ER electric refractory gunite machine sprays high-quality refractory materials for various industrial purposes, such as kiln lining, boiler lining, furnace lining, iron and steel plant operation, cement plant projects, and degasser lining. A prominent application of a refractory gunning machine is for heating and cooling and the repair of vacuum degasser linings. This process includes advanced technology for spraying the refractory mixture on the inner and outer surfaces of the degasser.
Rated Output:1-3m3/h (2-6 ton/h)
Motor Power:4kw
Voltage:3 phase, 380V, 50Hz
Rotor Speed:0-13.2r/min
Overall Dimension(L×W×H):1.13×0.54×1.1m
Share With:
Brief Introduction
Features
Parameters;
Detail Part
Application
Shipping
Related
Inquiry
Brief Introduction
Introduction of HWZ-3ER Electric Refractory Gunite Machine
1. Dry gunning (Conventional and High Density): The machine is capable of efficiently applying dry refractory materials.
2. Wet gunning / Spraycasting / Shotcreting: It enables the application of wet refractory mixtures through spraying or casting.
3. Casting and Pumping: The machine can be utilized for casting and pumping refractory materials.
4. Bricking: It facilitates the precise placement of refractory bricks during the lining process.
5. Rodding: The gunning machine can assist in the installation of reinforcing rods within the refractory lining.
6. Patching: It enables efficient patching or repairing of damaged areas within the refractory lining.
7. Ramming: The machine supports ramming operations for densely compacting refractory materials.
8. Hyrate gunning: This specific function is utilized for hot spray operations in steel furnaces and industrial furnace refractory layer applications.
Features
Features of HWZ-3ER Electric Refractory Gunite Machine
HWZ-3ER Electric Refractory Gunite Machine
To adjust the output capacity, an ABB frequency converter is employed, allowing for a range of 1m3/h to 3m3/h
For achieving a higher-pressure water supply to the nozzle assembly, a high-pressure water pump is utilized. This pump provides a water pressure of 30 bar
HWZ-3ER Electric Refractory Gunite Machine
HWZ-3ER machine incorporates a new type of pre-dampening nozzle assembly with a needle valve. This nozzle assembly allows for precise adjustment of the water quantity to be added
Parameters
Parameters of HWZ-3ER Electric Refractory Gunite Machine
Rated Output
1-3m3/h (2-6 ton/h)
Max. Horizontal Conveying Distance 100m
Max. Aggregate Size Φ10 mm
Conveying Hose Inner Diameter 32/38mm
Operating Air Pressure 0.2-0.4MPa(29-58PSI)
Air Consumption 5~6m3/min(180-215CFM)
Motor Power 4kw
Voltage 3 phase, 380V, 50Hz
Material Charging Height 1.1m
Rotor Speed 0-13.2r/min
Overall Dimension(L×W×H) 1.13×0.54×1.1m
Weight 430kg

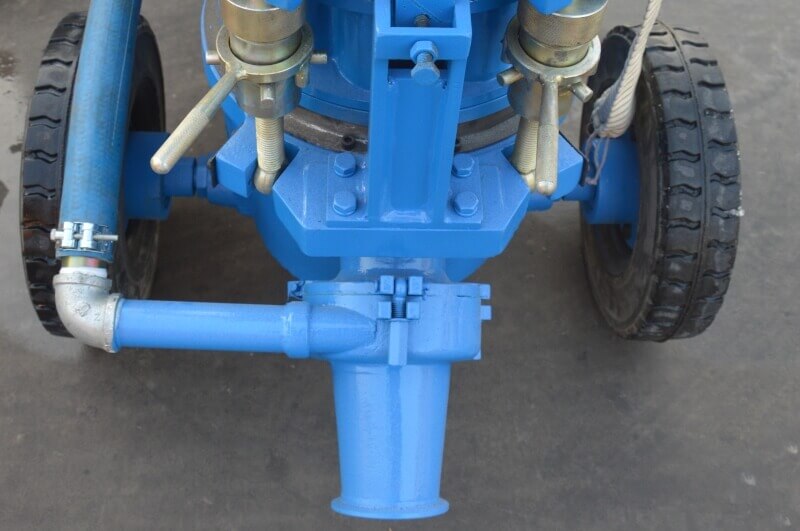

Detail Part
Detail Part of HWZ-3ER Electric Refractory Gunite Machine
Application
Application of HWZ-3ER Electric Refractory Gunite Machine
1. Production and transport of solid and wet concrete mixes and refractory materials. 2. In the metallurgical industry, they are used for the production of pig iron, for concreting nozzles and troughs, and concreting ladles and covers in steel production. 3. In civil engineering, they are often used for pumping concrete for structural foundation slabs and large areas.
