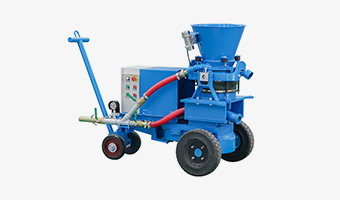

HWZ-3ER/S Refractory Dry Mix Shotcrete Machine

HWZ-3ER/S Refractory Dry Mix Shotcrete Machine is a special spraying machine for dry spraying of refractory materials specially designed by our company, which is improved based on the existing concrete shotcrete machine. The newly designed HWZ-3ER/S refractory gunite shotcrete machine for refractories effectively reduces dust and significantly improves the spraying effect. It is an ideal equipment for dry spraying of refractories.

Rated Output:1.5-3m3/h (3-6 ton/h)

Rotor Volume:6.3L

Rotor Speed:4-8r/min

Max. Horizontal Conveying Distance:200m

Operating Air Pressure:0.2-0.4MPa(29-58PSI)

Send Email

chat now

Share With:

Brief Introduction

Features

Parameters;

Detail Part

Application

Shipping

Inquiry

Brief Introduction

Introduction of HWZ-3ER/S Refractory Dry Mix Shotcrete Machine

HWZ-3ER/S is straight chamber rotor type refractory gunning machine.

Features

Features of HWZ-3ER/S Refractory Dry Mix Shotcrete Machine

HWZ-3ER/S Refractory Dry Mix Shotcrete Machine

Variable Output with variable-frequency drive

Bag Cutter and High Hopper with Vibrator

Clean Dust Gun

Electric Vibrator

Collect Dust Bag

Heavy-duty Solid Wheels

PLC integrated machine control

HWZ-3ER/S Refractory Dry Mix Shotcrete Machine

Electric control cabinet cover

Pneumatic master valve switch

Sector rigid liner

Sector rotor body

Integrated water pump installation

Automatic lubrication pump

Intelligent anti-clogging pipe system

Coupling and clamp(The Coupling and Clamp are optional as below)

Parameters

Parameters of HWZ-3ER/S Refractory Dry Mix Shotcrete Machine

Specification (with Electric motor drive):
1, Automatically to clean delivery line blockage; PLC+VFD+Air Pressure Sensor/PLC.
2, Sector hole to replace the circle hole in the rotor to improve the volume of the rotor and to decrease friction area, then with the same output, the rotor speed will be lower to improve the work life of rubber sealing plate and keep the motor power lower.
3,The combination of gunning machine and high pressure water, it is easy to move.
4,To add automatic lubricator to the rubber seal plate to make the work life of wear parts longer and make the motor power lower.
Rotor volume		6.3L
Rotor Speed		4-8r/min
Max. Output		1.5-3m3 /h
Max. Horizontal Conveying Distance		200m
Max. Aggregate Size		Φ10 mm
Conveying Hose Inner Diameter		38/32mm
Operating air Pressure		0.2-0.4MPa(29-58PSI)
Air Consumption		6~7m3/min(215-250CFM)
Material Charging Height		1.1m
	Power	4kW
Rotor Motor
	Voltage	3 phase,380V,50Hz
Water pump	Output:26L/min; Pumping head:70m; Motor:1.5kw
Automatic lubrication	Volume	2L
	Power	24V, 50w
Overall Dimension(L×W×H)		1600×1000×1300mm
Weight		665kg

Detail Part

Detail Part of HWZ-3ER/S Refractory Dry Mix Shotcrete Machine

Application

Application of HWZ-3ER/S Refractory Dry Mix Shotcrete Machine

1. Production and transport of solid and wet concrete mixes and refractory materials. 2. In the metallurgical industry, they are used for the production of pig iron, for concreting nozzles and troughs, and concreting ladles and covers in steel production. 3. In civil engineering, they are often used for pumping concrete for structural foundation slabs and large areas.
