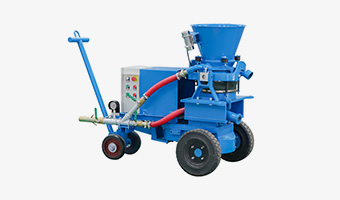

HWZ-5ER Electric Refractory Gunning Machine

HWZ-5ER electric refractory gunning machine is a multifunctional fire-resistant spraying equipment. The electric motor refractory gunning machine is equipped with a powerful high-pressure water pump. The water pressure of 30 bar ensures that the added water is fully atomized and mixed evenly. It is usually used for repairing and maintaining furnaces, kilns, and industrial boilers, and building heat-resistant buildings such as chimneys and incinerators.

Rated Output:1-5m3/h(2-10Ton/h)

Motor Power:5.5kw

Voltage:3 phase, 380V, 50Hz

Rotor Speed:0-13.2r/min

Overall Dimension(L×W×H):1.35×0.75×1.2m

Send Email

chat now

Share With:

Brief Introduction

Features

Parameters;

Detail Part

Application

Shipping

Inquiry

Brief Introduction

Introduction of HWZ-5ER Electric Refractory Gunning Machine

HWZ-5ER electric refractory gunning machine uses compressed air and a rotor system to push refractory to the required surface. Refractory is first mixed with water to form a wet mixture, and then it is sent to the hopper of the machine. Then, a rotor system pressurizes the mixture and pushes it through the hose and nozzle at high speed. Operators control the flow rate and direction of materials and apply refractories to furnaces, kilns, boilers, and other high-temperature industrial equipment.

Features

Features of HWZ-5ER Electric Refractory Gunning Machine

HWZ-5ER Electric Refractory Gunning Machine

High hopper: accommodates more materials at one time, improving efficiency and productivity

Clean dust gun: ensures a cleaner and safer working environment

Collect dust bag: minimizes the risk of dust exposure and ensures operator safety

Electric control box: allows the operator to adjust spraying parameters, which is convenient and safe

HWZ-5ER Electric Refractory Gunning Machine

Heavy-duty solid wheels: provides convenience, stability, and durability

Pre-dampening nozzle: low dust, reducing the amount of water added, and increasing the density of refractory materials

High-quality body materials: withstand harsh working conditions and ensure a long service life

Parameters

Parameters of HWZ-5ER Electric Refractory Gunning Machine

Rated Output	1-5m3/h(2-10Ton/h)
Max. Horizontal Conveying Distance	200m
Max. Aggregate Size	Φ15 mm
Conveying Hose Inner Diameter	51mm
Operating Air Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	8~9m3/min(285-325CFM)
Motor Power	5.5kW
Voltage	3 phase,380V,50Hz
Material Charging Height	1.1m
Rotor Speed	0-13.2r/min
Overall Dimension(L×W×H)	1.35×0.75×1.2m
Weight	720kg

Detail Part

Detail Part of HWZ-5ER Electric Refractory Gunning Machine

Application

Application of HWZ-5ER Electric Refractory Gunning Machine

1. Production and transport of solid and wet concrete mixes and refractory materials. 2. In the metallurgical industry, they are used for the production of pig iron, for concreting nozzles and troughs, and concreting ladles and covers in steel production. 3. In civil engineering, they are often used for pumping concrete for structural foundation slabs and large areas.
