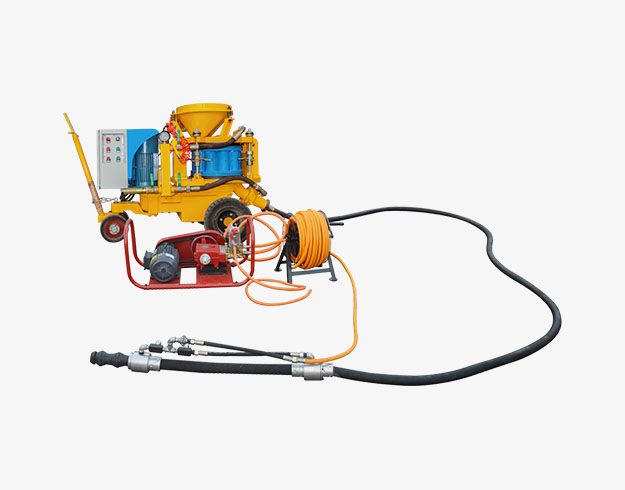

HWZ-9ER Electric Refractory Spraying Machine

HWZ-9ER electric refractory spraying machine can be perfectly used for the maintenance and repair of refractory lining. ABB frequency conversion can realize variable output and effectively avoid the phenomenon of material blocking the pipeline. But also ensure the integrity of the furnace lining and the safety of the steel production process.

Rated Output:3-9m3/h(6-18ton/h)

Motor Power:7.5kw

Voltage:3 phase, 380V, 50Hz

Rotor Speed:0-11r/min

Overall Dimension(L×W×H):1.65×0.9×1.3m

Send Email

chat now

Share With:

Brief Introduction

Features

Parameters;

Detail Part

Application

Shipping

Inquiry

Brief Introduction

Introduction of HWZ-9ER Electric Refractory Spraying Machine

When HWZ-9ER electric refractory spraying machine is used, you can get a high-performance jet with the least dust at the nozzle, aiming at effectively applying refractory materials in the furnace and ensuring your excellent work.

Features

Features of HWZ-9ER Electric Refractory Spraying Machine

HWZ-9ER Electric Refractory Spraying Machine

Variable output with variable-frequency drive

Lightweight nozzle(Low rebound, low dust. Reduce the additive water amount. Improve refractory compactness and strength)

High-pressure water pump, 30 bar pressure make sure to add water fully atomize, and mix evenly

Coupling and clamp(The coupling and clamp are optional)

HWZ-9ER Electric Refractory Spraying Machine

Bag cutter and hopper with electric vibrator

Collect dust bag and clean dust gun

Electric control box with protective frame

Heavy-duty solid wheels

Blast rubber hose

Parameters

Parameters of HWZ-9ER Electric Refractory Spraying Machine

Rated Output	3-9m3/h(6-18ton/h)
Max. Horizontal Conveying Distance	100m
Max. Aggregate Size	Φ20 mm
Conveying Hose Inner Diameter	64mm
Operating Air Pressure	0.2-0.4MPa
Air Consumption	10~12m3/min
Motor Power	7.5kW
Voltage	3 phase, 380V, 50Hz
Material Charging Height	1.2m
Rotor Speed	0-11r/min
Overall Dimension(L×W×H)	1.65×0.9×1.3m
Weight	900kg

Detail Part

Detail Part of HWZ-9ER Electric Refractory Spraying Machine

Application

Application of HWZ-9ER Electric Refractory Spraying Machine

1. Production and transport of solid and wet concrete mixes and refractory materials. 2. In the metallurgical industry, they are used for the production of pig iron, for concreting nozzles and troughs, and concreting ladles and covers in steel production. 3. In civil engineering, they are often used for pumping concrete for structural foundation slabs and large areas.

Grouting Construction In Deep Foundation Pits, Tunnels, Mines, Water Conservancy Projects And Buildings

Whether in ground reinforcement or underground excavation projects, our full range of jet grouting plant is committed to providing cutting-edge technology and excellent support to ensure our customers can efficiently achieve their project goals.

Industrial Hose Pump For A Paper Mill In Thailand

Industrial hose pumps are used in many key processes of paper mills, including slurry transportation, chemical addition, and wastewater treatment.

Hydroseeding Machine For Slope Protection In Australia

Hydroseeding machine can quickly and massively plant vegetation on slopes. In Australia, the use of hydroseeding machine for slope protection has proved to be a very effective method to prevent erosion.

$Refractory Gunning Machine For Repairing Of Furnaces$

Refractory Gunning Machine For Repairing Of Furnaces

The refractory gunning machine is widely used in boiler chimneys, kilns, steelmaking furnaces and other industries. Through the high-quality application of refractory materials, the gunning machine has formed a firm and lasting combination with the existing lining, ensuring that the repaired lining can withstand high temperature and harsh conditions for a long time.
